EDO-AIRE CL106 Boost Pump Pressure Indicator Gauge NSN 6685-00-058-9524 F-15 F-16 F-106

Description

EDO-AIRE CL106 Boost Pump Pressure Indicator

Vintage military aviation pressure indicator manufactured by EDO-AIRE, Wichita, Kansas. The instrument face is marked BOOST PUMP with a 0–50 indicating scale.

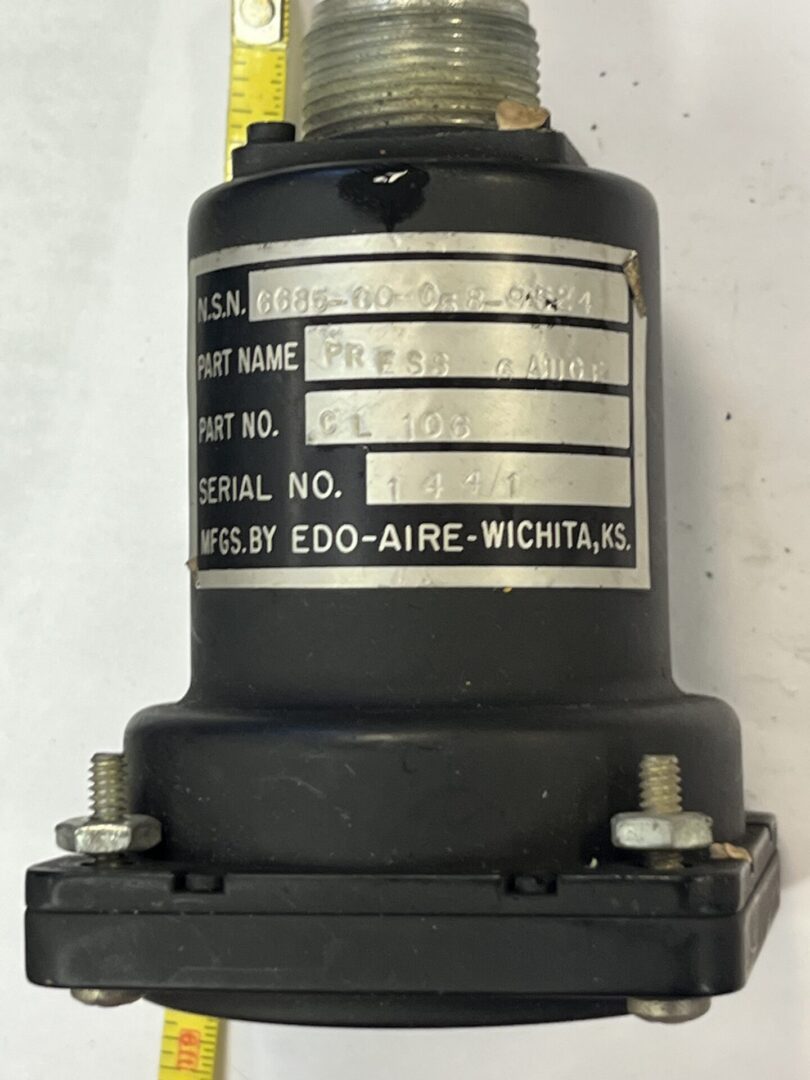

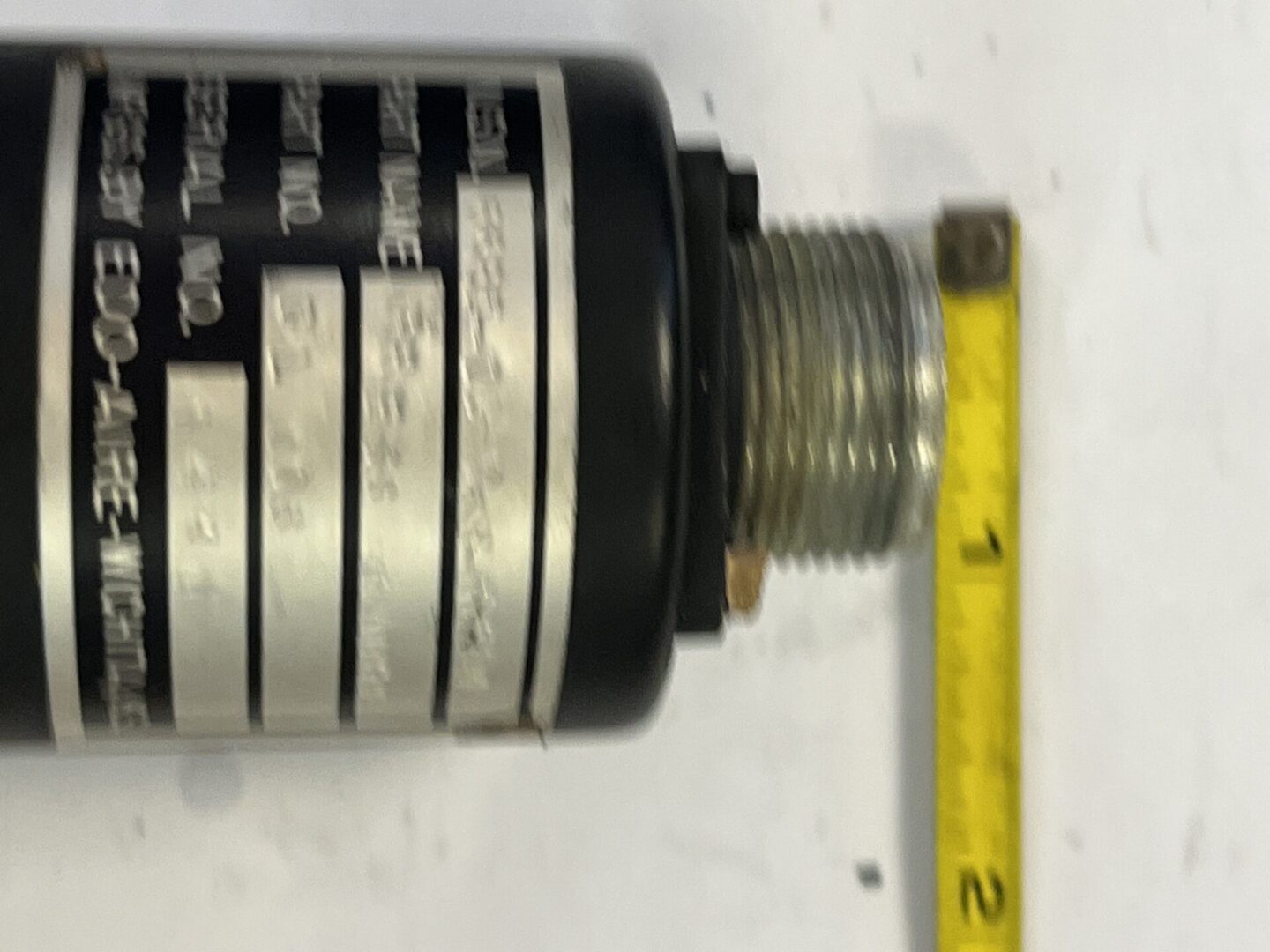

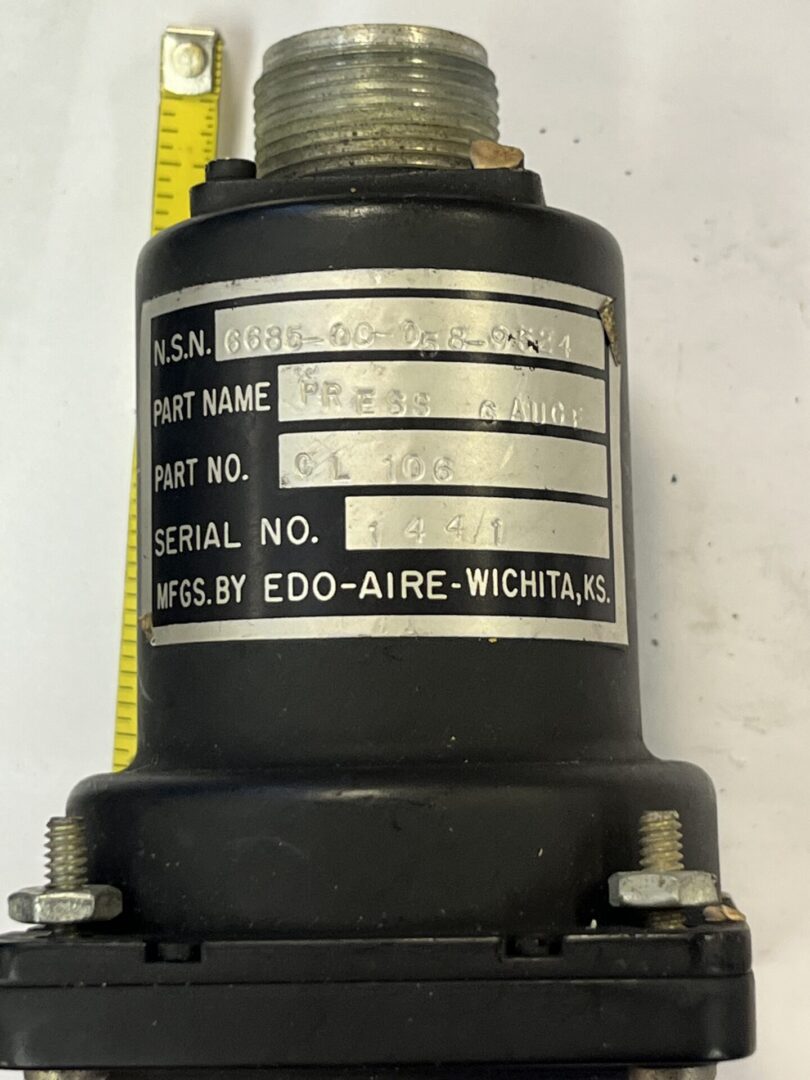

Part / identification information:

• Part Number: CL106
• NSN: 6685-00-058-9524
• Serial Number: 1441
• Federal item name: Indicator, Pressure

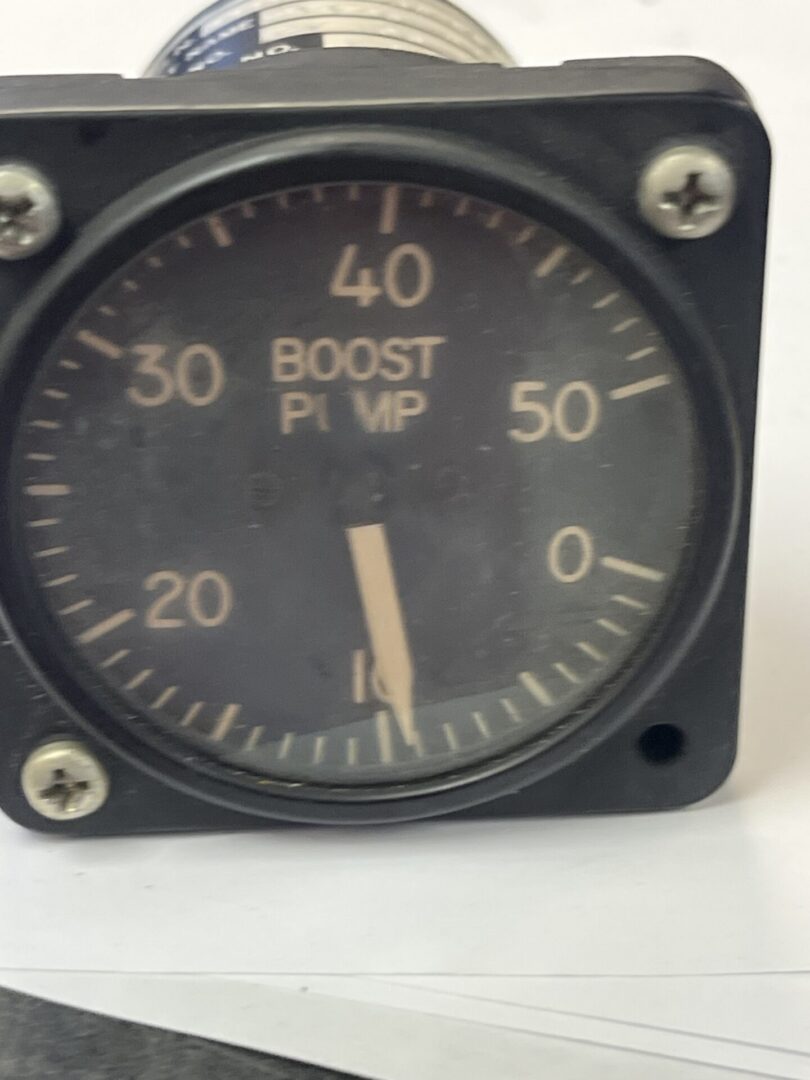

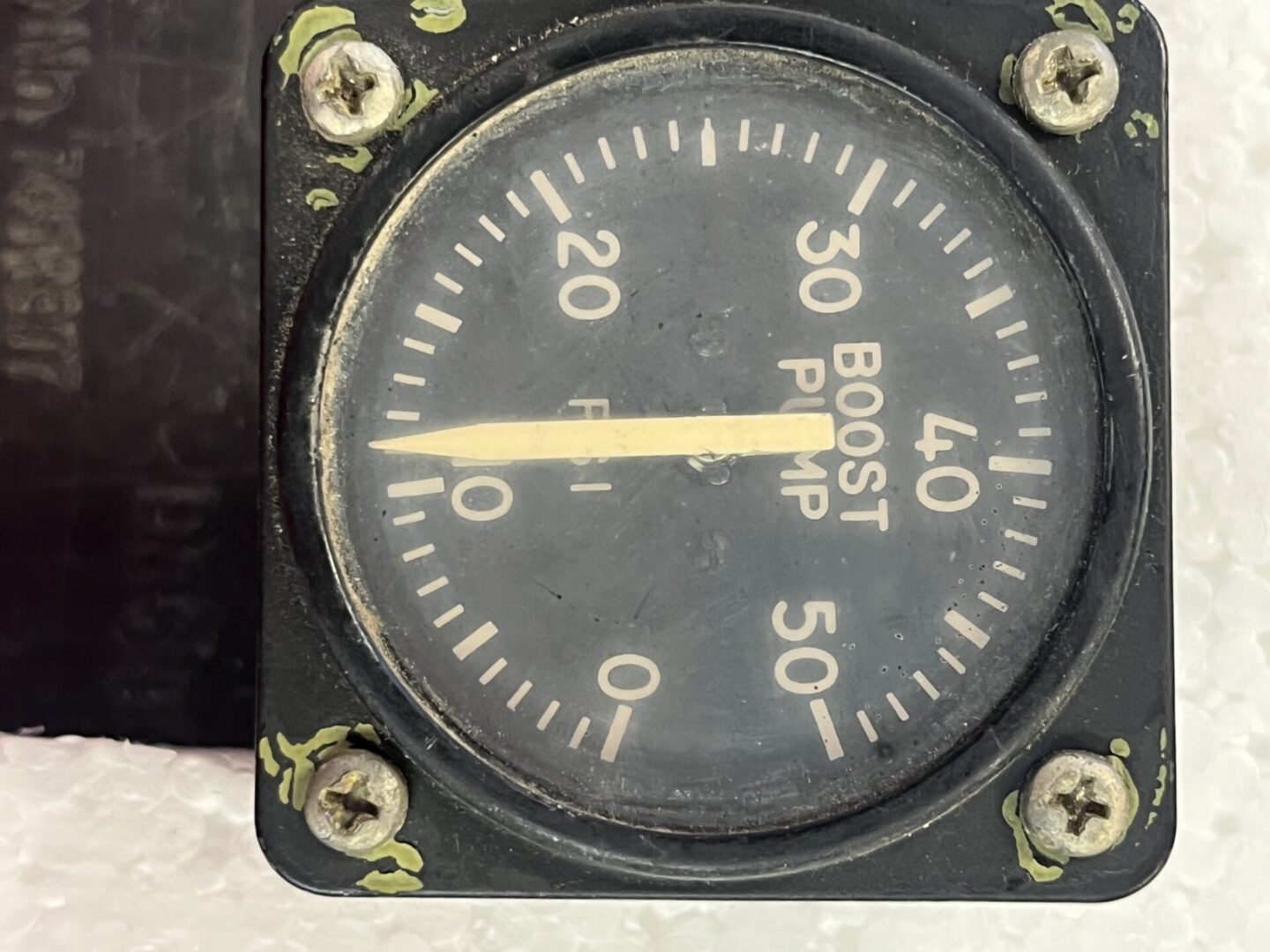

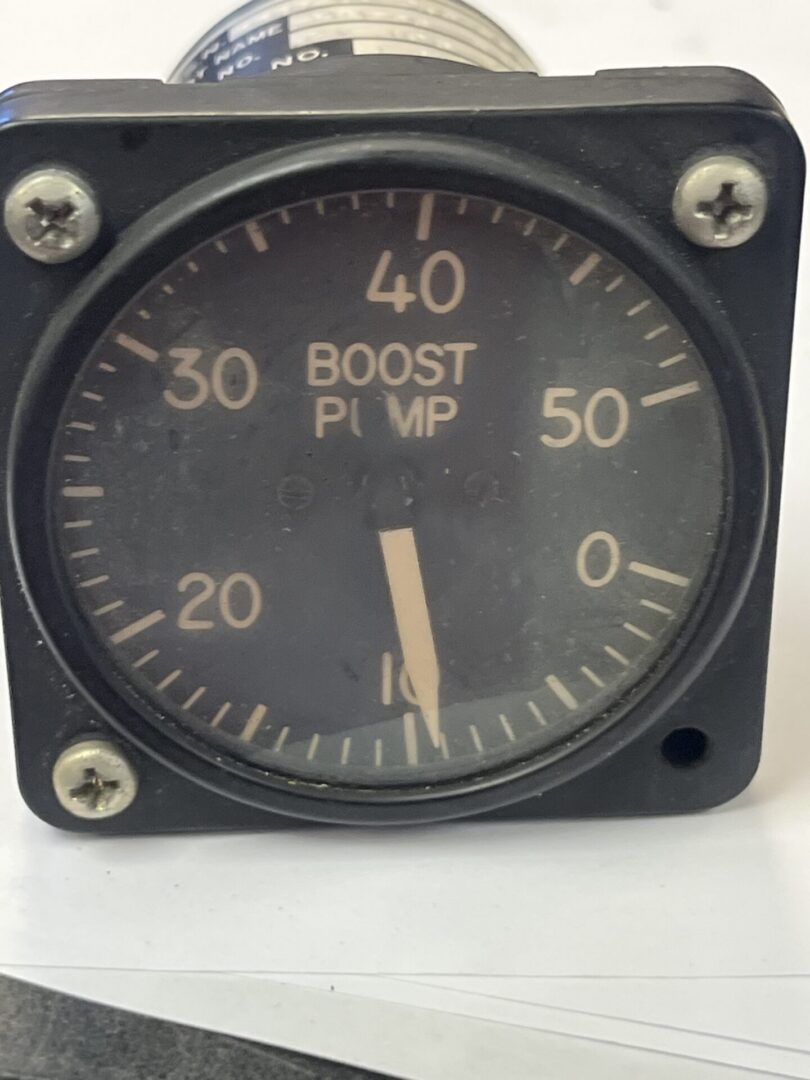

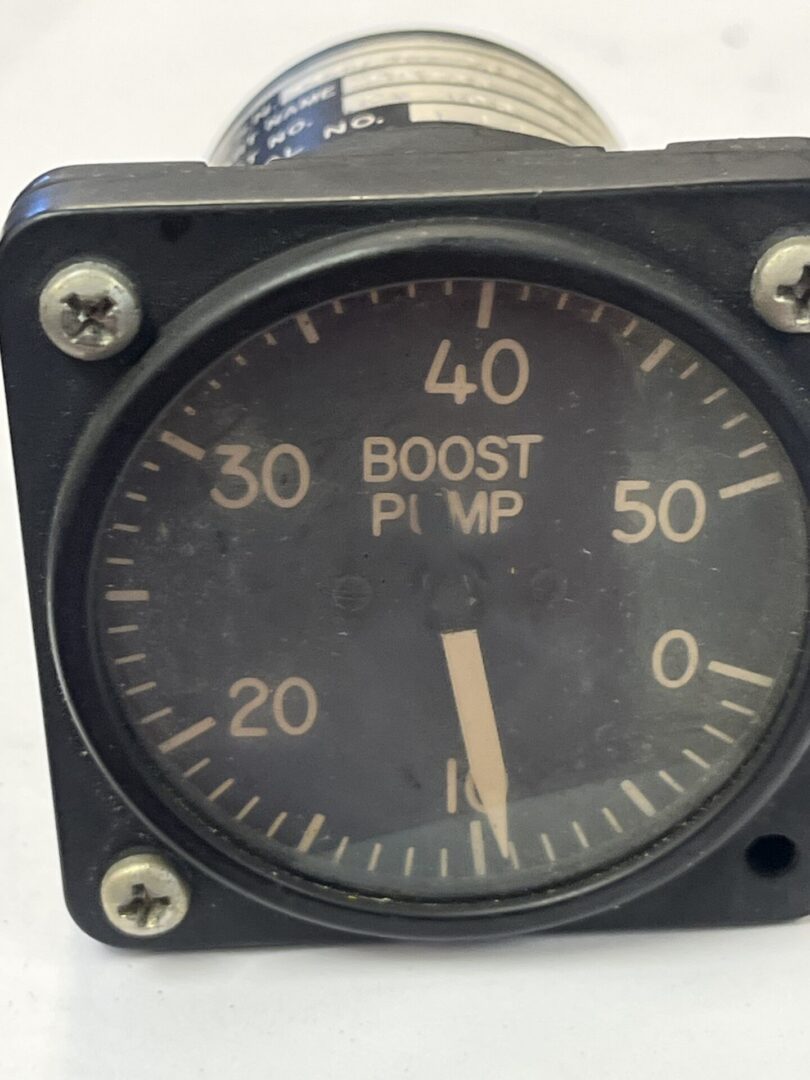

• Face marking: BOOST PUMP
• Scale: 0–50

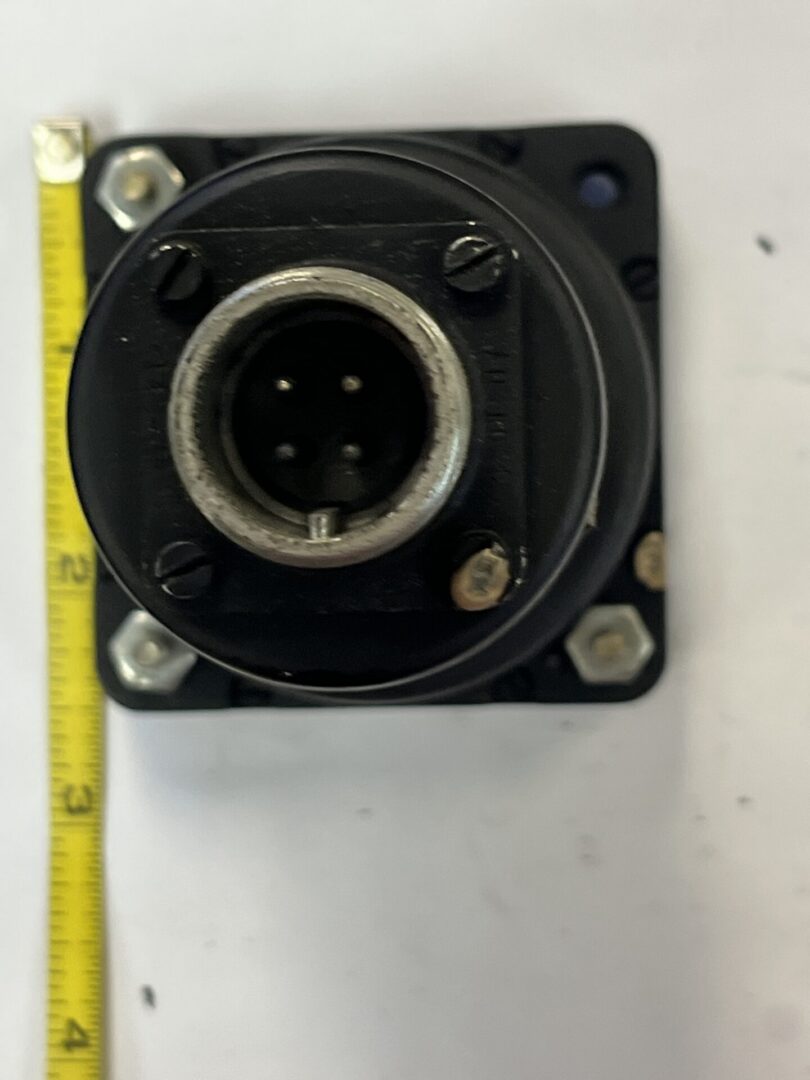

• Electrical connector: MS3102-14S-2P, 4-pin
• Frequency: 400 Hz
• Single phase
• Government-listed weight: 0.8 lb
• Government-listed dimensions: approximately 3.531″ long × 2.375″ wide × 2.375″ high
• Government-listed end-item applications: support equipment for F-15, F-16 and F-106 aircraft

The federal supply record dates this NSN to January 1, 1961, making this an interesting piece of vintage U.S. military aviation equipment as well as a replacement/surplus component.

CONDITION: Used military/aviation surplus. Shows cosmetic wear, scratches and paint loss consistent with age and previous use/storage. Dial markings remain readable. Untested; operating condition is unknown.

Sold as pictured. No airworthiness certification, FAA 8130, traceability or return-to-service documentation is included. Buyer is responsible for determining suitability for any intended application.

Vintage EDO-AIRE manufacture: This CL106 was manufactured by EDO-AIRE’s Wichita, Kansas aircraft instrument operation. EDO acquired the Wichita instrument business in 1969; the operation was subsequently purchased by Sigma-Tek in 1983. Based on the EDO-AIRE identification plate, this instrument is believed to date from the 1969–1983 EDO-AIRE production period.
